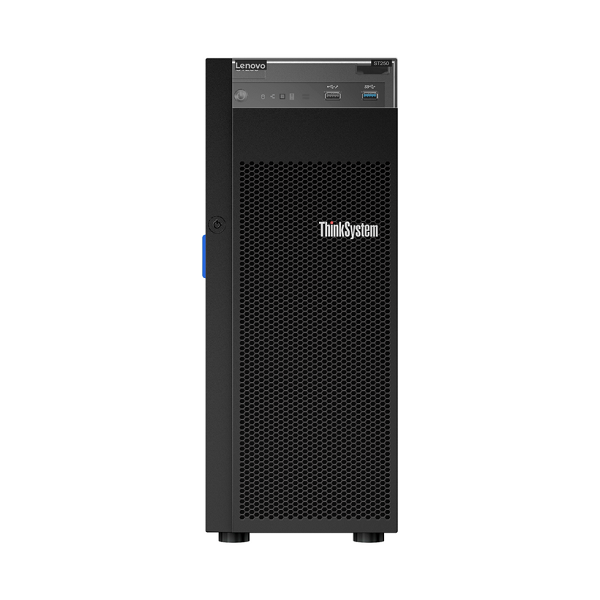

Lenovo 7Y45A049EA ThinkSystem ST250 Server (E-2200) Price in Doha Qatar
ST250 Xeon E-2276G (6C 3.8GHz 12MB Cache/80W), 1x16GB, O/B, 2.5″ HS (8), 530-8i, HS 550W, XCC Standard
| Components | Specification |
|---|---|
| Machine type | 7Y46 – 1 year warranty 7Y45 – 3 year warranty |
| Form factor | Tower (can be installed in a rack with the available Rack Mount Kit) |
| Processor | One Intel processor (formerly codenamed “Coffee Lake-S Refresh”). Choose from:
|
| Chipset | Intel C246 chipset |
| Memory | Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 2666 MHz. Support ECC UDIMMs. |
| Memory maximum |
|
| Memory protection | Error-correcting code (ECC) |
| Disk drive bays | Available configurations:
In addition, the ST250 supports one M.2 Drive via an onboard connector. Note: If the onboard SATA controller is used to connect the drive bays, then only 6 drives can be installed if an M.2 drive is installed. |
| Maximum internal storage |
|
| Storage controller |
|
| Optical drive bays | Two half-height 5.25-inch bays for optical or tape drives. Supports SATA DVD-ROM or DVD-RW (multiburner). Note: If the onboard SATA controller is used to connect the drive bays, then only 6 drives can be installed if an optical drive is installed. |
| Tape drive bays | Two half-height 5.25-inch bays for optical or tape drives. Support for one RDX drive or one LTO tape drive. |
| Network interfaces | Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management. |
| PCI Expansion slots | Four PCIe slots as follows:
|
| Ports |
|
| Cooling | Supports ASHRAEÂ A2 environments. Certain configurations support ASHRAE A3. Two or three fixed system fans depending on the drive bay configuration. Additional fans attached to the processor heat sink and in the power supplies. |
| Power supply | Two choices, model dependent:
|
| Hot-swap parts | Hard drives and 550W power supplies |
| Systems management | Operator panel with status LEDs. XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Advanced to enable remote control functions. |
| Security features | Power-on password, administrator’s password, Trusted Platform Module, supporting TPM 1.2 or TPM 2.0. In China only, optional Nationz TPM 2.0 module. Optional chassis intrusion switch. Padlock loop and Kensington cable slot and optional lockable front door for physical security. |
| Video | G200 graphics with 16 MB memory, integrated into the XClarity Controller. For use with local Administrator functions (not designed for workstation use). Maximum resolution is 1920×1200 32bpp at 60Hz. |
| Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system support section for specifics. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD). |
| Service and support | Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications. |
| Dimensions | Width: 176 mm (6.9 in.), height: 444 mm (17.5 in.), depth: 578 mm (22.8 in.). See Physical and electrical specifications for details. |
| Weight | Fully configured: 23.56 kg (51.94 lb) |
