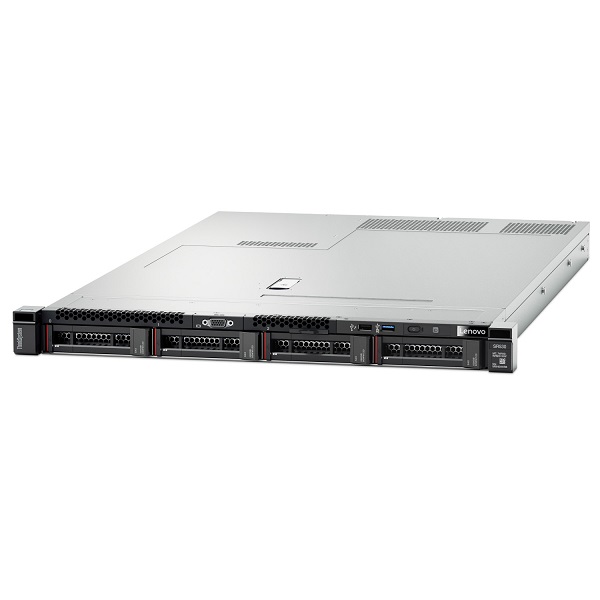

Lenovo 7X08A0BFEA ThinkSystem SR530 Server (Xeon SP Gen 1 / Gen 2) Price in Doha Qatar
SR530 Xeon Silver 4208 (8C 2.1GHz 11MB Cache/85W) 32GB 2933MHz (1x32GB, 2Rx4 RDIMM), O/B, No RAID, 1x750W, XCC Enterprise, Tooless Rails
| Attribute | Specification |
|---|---|
| Machine types | 7X07 – 1 year warranty 7X08 – 3 year warranty |
| Form factor | 1U rack-mount |
| Processor | Up to two Intel Xeon Gen 2 Bronze, Silver, Gold, or Platinum processors:
1st Gen Intel Xeon processors are also supported. |
| Chipset | Intel C622 |
| Memory | Up to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel). Support for RDIMMs and LRDIMMs. Memory types cannot be intermixed. Memory speed up to 2933 MHz depending on the processor selected. |
| Persistent memory | Not supported |
| Memory protection | Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing. |
| Memory capacity | Up to 768 GB with 12x 64 GB RDIMMs (Up to 384 GB per processor) |
| Drive bays |
|
| Internal storage capacity |
|
| Storage controller |
|
| Optical drive bays | None. Support for an external USB DVD RW Optical Disk Drive (See Optical drives). |
| Network interfaces |
|
| I/O expansion slots | Up to three slots depending on the riser cards installed. The slots are as follows:
PCIe x16 slot 3 requires the second processor to be installed. |
| GPUs | Not supported |
| Ports |
|
| Cooling | Four (one processor) or six (two processors) non-hot-swap system fans with N+1 redundancy. |
| Power supply | Up to two redundant hot-swap 550 W or 750 W (100 – 240 V) High Efficiency Platinum or 750 W (200 – 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only). |
| Video | Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920×1200 at 60 Hz with 32 bits per pixel. |
| Hot-swap parts | Drives (select models) and power supplies. |
| Systems management | XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner. |
| Security features | Power-on password, administrator’s password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC). |
| Operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating systems section for specifics. |
| Warranty | One-year (7X07) or three-year (7X08) customer-replaceable unit (CRU) and onsite limited warranty with 9×5 Next Business Day Parts Delivered. |
| Service and support | Optional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Software Support, and Basic Hardware Installation Services. |
| Dimensions | Width: 435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 750 mm (29.5 in.). See Physical specifications for details. |
| Weight | Minimum configuration: 10.2 kg (22.5 lb), maximum: 16 kg (35.3 lb) |
