Huawei OSX040N01 Accessories Price in Doha Qatar
SKU: OSX040N01

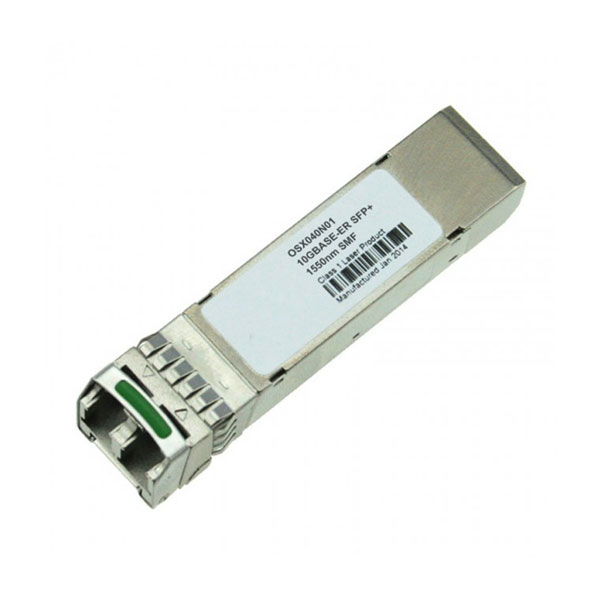

Huawei OSX040N01 02310CNF Accessories
- Model: LE0M0XS4FF
- Type: Optical Transceiver
- Form Factor: SFP+
- Speed: 10G
- Fiber Type: Single-mode
- Wavelength: 1550 nm
- Distance: Up to 40 km
- Connector: LC
| Item | Value |
|---|---|
| Basic Information | |
| Module name | OSX040N01 |
| Part Number | 02314KKG |
| Model | OSX040N01 |
| Form factor | SFP+ |
| Application standard | 10GBASE-ER |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Digital diagnostic monitoring (DDM) | Supported |
| Transmission rate [bit/s] | 10 Gbit/s |
| Target transmission distance [km] | Single-mode fiber: 40 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1550 nm |
| Maximum Tx optical power [dBm] | 4.0 dBm |
| Minimum Tx optical power [dBm] | -4.7 dBm |
| Minimum extinction ratio [dB] | 3.0 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity [dBm] | -14.1 dBm |
| Overload power [dBm] | -1.0 dBm |
Brand
Huawei
