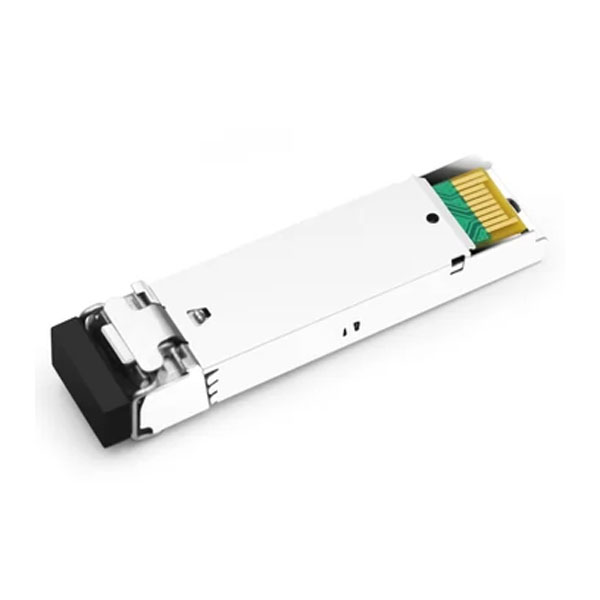

Huawei S-SFP-GE-LH80-SM1550 Accessories Price in Doha Qatar
SKU: S-SFP-GE-LH80-SM1550
Huawei S-SFP-GE-LH80-SM1550 02317348 Accessories
- Model: LE0M0GS8FF
- Type: Optical Transceiver
- Form Factor: eSFP
- Speed: GE (Gigabit Ethernet)
- Fiber Type: Single-mode
- Wavelength: 1550 nm
- Distance: Up to 80 km
- Connector: LC
| Item | Value |
|---|---|
| Basic Information | |
| Module name | S-SFP-GE-LH80-SM1550 |
| Part Number | 02317348 |
| Model | S-SFP-GE-LH80-SM1550 |
| Form factor | eSFP |
| Application standard/Type | 1000BASE-ZX |
| Connector type | LC/DLC |
| Optical fiber type | SMF |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Working case temperature [°C (°F)] | 0°C to 70°C (32°F to 158°F) |
| DDM options | Supported |
| Transmission rate [bit/s] | 1Gbit/s |
| Target transmission distance [km] | Single-mode fiber (G.652) (with diameter of 9 μm): 80 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1550 nm |
| Maximum Tx optical power (AVG) [dBm] | 5.0 dBm |
| Minimum Tx optical power (AVG) [dBm] | -2.0 dBm |
| Minimum extinction ratio [dB] | 9 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity (OMA) [dBm] | -23 dBm |
| Overload power (AVG) [dBm]v | -3.0 dBm |
Brand
Huawei
