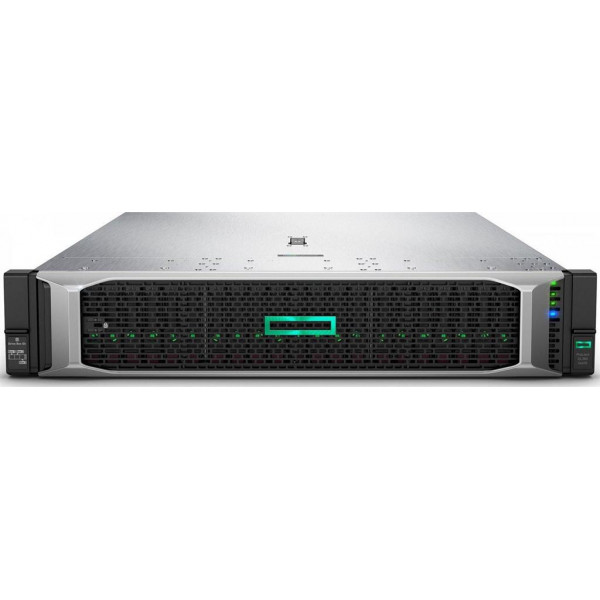

HPE ProLiant P20248-B21 DL380 Gen10 Server Price in Doha Qatar
HPE ProLiant DL380 Gen10 Intel Xeon-G 5220 18-Core (2.20GHz 24.75MB L3 Cache) 32GB (1 x 32GB) PC4-2933Y RDIMM 8 x Hot Plug 2.5in Small Form Factor Smart Carrier Smart Array P408i-a NC SR No Optical 800W 3yr Next Business Day Warranty
| Type | Server |
| Product Form Factor | Rack-mountable – 2U |
| Built-in Devices | LED panel |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| CPU | Intel Xeon Gold 5220 / 2.2 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | 18-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | FCLGA3647 Socket |
| Chipset Type | Intel C621 |
| Installed Size | L3 cache – 24.75 MB |
| Cache Per Processor | 24.75 MB |
| Technology | DDR4 SDRAM – Advanced ECC |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 23 (empty) |
| Features | Registered, dual rank, slots 13 – 24 are available in two-processor configuration only, HPE SmartMemory |
| Configuration Features | 1 x 32 GB |
| RAM Supported | 3 TB Load-Reduced – ECC ¦ 1.5 TB registered – ECC ¦ 192 GB Non-Volatile – ECC |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | HPE Smart Array P408i-a |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Buffer Size | 2 GB |
| Supported Flash Memory Cards | microSD |
| Monitor Type | None. |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x 10/25 Gigabit Ethernet SFP28 |
| Ethernet Controller | HPE 640FLR |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 5 |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5″ SFF |
| Interfaces | 1 x HP iLO – Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x HP iLO – RJ-45 (1 rear) ¦ 2 x LAN (10/25 Gigabi … |
| Included Accessories | 4 standard fans |
| Compliant Standards | AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1 |
| Device Type | Power supply – hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 800 Watt |
| OS Provided | No operating system |
| OS Certified | CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server … |
| Software | HPE Server UEFI |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 2.1 |
| Service & Support | Limited warranty – parts and labor – 3 years – on-site |
| Width | 17.5 in |
| Depth | 26.7 in |
| Height | 3.4 in |
| Weight | 32.85 lbs |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 – 90% (non-condensing) |
| Product Description | HPE ProLiant DL380 Gen10 – rack-mountable – Xeon Gold 5220 2.2 GHz – 32 GB – no HDD |
| Height (Rack Units) | 2U |
| Processor | 1 x Intel Xeon Gold 5220 / 2.2 GHz (3.9 GHz) (18-core) |
| Processor Socket | FCLGA3647 Socket |
| Cache Memory | 24.75 MB L3 cache |
| RAM | 32 GB (installed) / 1.5 TB (max) – DDR4 SDRAM – Advanced ECC |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) (HPE Smart Array P408i-a) |
| Server Storage Bays | Hot-swap 2.5″ |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Networking | 10 GigE, 25 Gigabit LAN |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.5 in x 26.7 in x 3.4 in |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty – parts and labor – 3 years – on-site |
| manufacturer | Hewlett Packard Enterprise |
| last_sync | 07/12/2020 |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2933 MHz |
| Front Accessible Bays Qty | 1 |
| Localization | Region: Worldwide |
| Voltage Required | AC 120/230 V (50/60 Hz) |
