Processor core available  16 cores

Processor cache  24 MB L3

Memory type  HPE DDR4 SmartMemory

Persistent Memory Type  Intel® Optane™ Persistent Memory for HPE

Persistent Memory Media Capacity  128 GB – 512 GB

NVDIMM type  Optional – Intel® Optane™ Persistent Memory 200 Series for HPE

NVDIMM capacity  128 GB – 512 GB

Infrastructure management  HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional, requires licenses)

System fan features  4 Hot-plug redundant fans, standard

Power supply type  1 HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply

Expansion Slots  8, for detailed descriptions refer to the QuickSpecs

Network Controller  Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

Storage controller  HPE Smart Array P408i-a SR Controller and HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable

Processor Name  Intel® Xeon® Silver 4314 (16 Core, 2.4 GHz, 24 MB, 135W)

Processor number  1

Processor speed  2.4 GHz

Memory, standard  32 GB (1 x 32 GB) RDIMM

Included hard drives  None ship standard, 8 SFF drives supported

Optical drive type  Optional DVD-ROM Optional via Universal Media Bay External support only

Security  Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

Form Factor  2U

Weight  63.43 lbs. maximum

Weight  28.77 kg maximum

Minimum dimensions ( H x W x D)  3.44 x 17.54 x 28 in

Minimum dimensions ( H x W x D)  8.75 x 44.54 x 71. cm

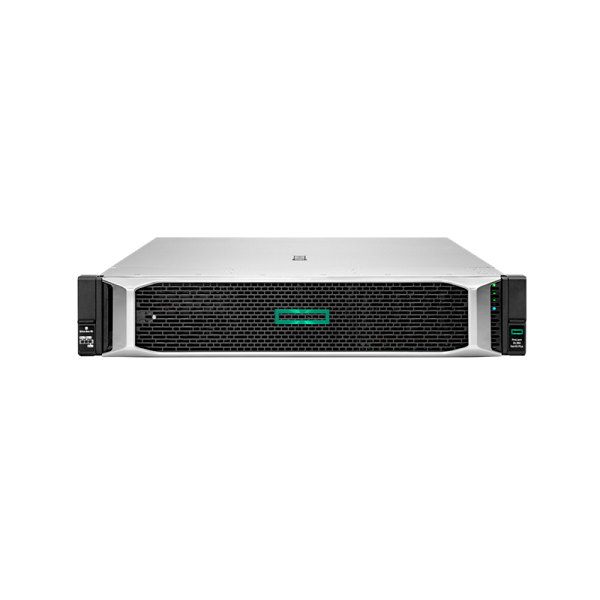

Detailed product description  HPE ProLiant DL380 Gen10 Plus server with one Intel® Xeon® Scalable 4314 processor, 1x 32 GB dual rank memory, HPE Smart Array P408i-a SR (8 Internal Lanes/2 GB Cache) 12G SAS Modular Controller and HPE 96W Smart Storage Lithium-ion Battery with 145 mm Cable, eight small form factor drive bays, four standard fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty
