| Attribute | Specification |
|---|---|
| Machine types | 7X05 – 1 year warranty 7X06 – 3 year warranty |
| Form factor | 2U rack-mount. |
| Processor | Up to two 2nd Gen Intel Xeon Bronze, Silver, Gold, or Platinum processors:
1st Gen Intel Xeon processors are also supported. |
| Chipset | Intel C624. |
| Memory | Up to 24 DIMM sockets (12 DIMMs per processor; six memory channels per processor with two DIMMs per channel). Support for RDIMMs, LRDIMMs (1st Gen processors only), or 3DS RDIMMs. Memory speed up to 2933 MHz depending on the processor selected. Memory types cannot be intermixed. |
| Persistent memory | Up to 12x TruDDR4 2666 MHz DCPMMs in the DIMM slots. Not supported with 1st Gen Intel Xeon SP processors. |
| Memory protection |
Note: In the configurations with DCPMMs, memory mirroring is supported only in the App Direct mode (other DCPMM modes do not support memory mirroring) and applies only to the RDIMMs or 3DS RDIMMs (DCPMMs are not mirrored). Memory sparing is not supported in the configurations with DCPMMs. |
| Memory capacity |
Note: Server configurations with more than 1 TB of memory capacity per socket (including DCPMMs and RDIMMs or 3DS RDIMMs) require processors that support up to 4.5 TB (L-suffix) per socket. |
| Drive bays |
|
| Internal storage capacity |
|
| Storage controller |
|
| Optical drive bays | None. Support for an external USB DVD RW Optical Disk Drive (See Optical drives). |
| Network interfaces |
|
| I/O expansion slots | Up to seven slots. Slots 4 and 7 are the fixed slots on the system planar, and the remaining slots depend on the riser cards installed. The slots are as follows:
Slots 5 and 6 require the second processor to be installed. Single-wide PCIe x16 Slot 1 requires the second processor to be installed. |
| Ports |
|
| Cooling | Five (one processor) or six (two processors) hot-swap single-rotor system fans with N+1 redundancy. |
| Power supply | Up to two redundant hot-swap 550 W, 750 W, or 1100 W (100 – 240 V), or 1600 W (200 – 240 V) High Efficiency Platinum AC power supplies, or 750 W (200 – 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only). |
| Video | Matrox G200e with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920×1200 at 60 Hz with 32 bits per pixel. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, light path diagnostics, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner. |
| Security features | Power-on password, administrator’s password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC). |
| Operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating systems section for specifics. |
| Warranty | One-year (Machine Type 7X05) or three-year (Machine Type 7X06) customer-replaceable unit (CRU) and onsite limited warranty with 9×5 Next Business Day Parts Delivered. |
| Service and support | Optional Lenovo Services upgrades: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive YourData, Enterprise Software Support, and Basic Hardware Installation Services. |
| Dimensions | Width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 764 mm (30.1 in.). See Physical specifications for details. |
| Weight | Minimum configuration: 19 kg (41.9 lb), maximum: 32 kg (70.5 lb) |

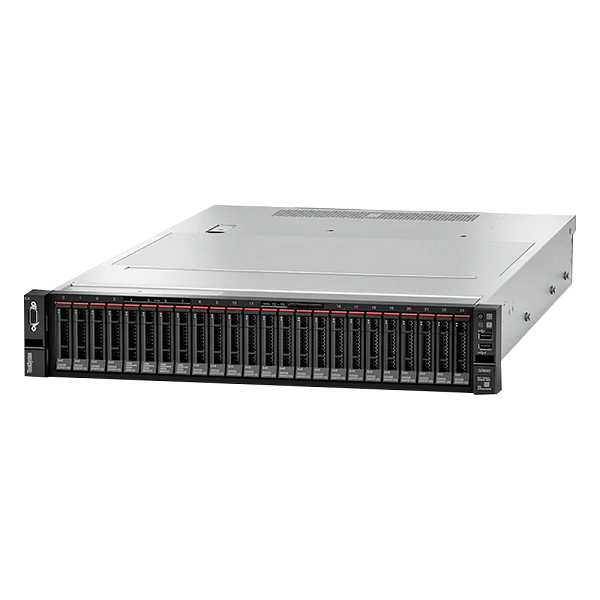

Lenovo 7X06A0NUEA ThinkSystem SR650 Server (Xeon SP Gen 1 / Gen 2) Price in Doha Qatar
SR650 Xeon Gold 6226R (16C 2.9GHz 22MB Cache/150W) 32GB 2933MHz (1x32GB, 2Rx4 RDIMM), O/B, 9350-8i, 1x750W, XCC Enterprise, Tooless Rails
Brand
Lenovo
