| Components | Specification |
|---|---|
| Machine type | 7D7R – 1 year warranty 7D7Q – 3 year warranty |
| Form factor | 1U rack-mount |
| Processor | One Intel processor. Choose from:
|
| Chipset | Intel C256 chipset (“Tiger Lake”) part of the “Tatlow” platform |
| Memory | Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 3200 MHz (Xeon processors) or 2666 MHz (Pentium processors). Support ECC UDIMMs. |
| Memory maximum | Up to 128 GB using 4x 32 GB UDIMMs. |
| Memory protection | Error-correcting code (ECC) |
| Disk drive bays | Available configurations:
In addition, the SR250 V2 supports two M.2 drives installed in an M.2 adapter which is installed in PCIe slot. |
| Maximum internal storage |
|
| Storage controller |
|
| Optical drive bays | No support. Use an external optical drive. |
| Tape drive bays | No support |
| Network interfaces | Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management. |
| PCI Expansion slots | Two or three PCIe slots depending on the riser selected:
Note: Slots 1 and 2 are PCIe Gen 4 with a Xeon processor, and PCIe Gen 3 with a Pentium processor |
| Ports |
|
| Cooling | Four non-hot-swap system fans |
| Power supply | Model dependent choices:
|
| Hot-swap parts | Hard drives and hot-swap power supplies |
| Systems management | Operator panel with status LEDs. XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Advanced to enable remote control functions. |
| Security features | Power-on password, administrator’s password, Trusted Platform Module, supporting TPM 2.0. Optional lockable front bezel for physical security. |
| Video | G200 graphics with 16 MB memory, integrated into the XClarity Controller. For use with local Administrator functions (not designed for workstation use). Maximum resolution is 1920×1200 32bpp at 60Hz. |
| Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system support section for specifics. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD). |
| Service and support | Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications. |
| Dimensions | Width: 435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 545 mm (21.5 in.). See Physical and electrical specifications for details. |
| Weight | Maximum configuration: 12.3 kg (27.1 lb) |

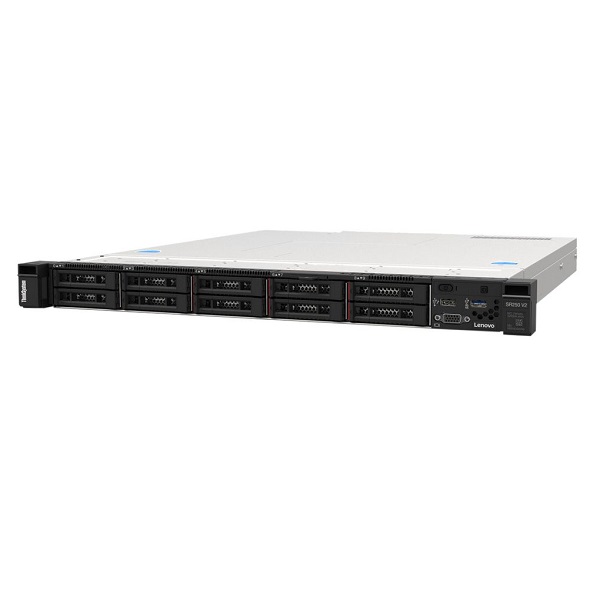

Lenovo 7D7QA00YEA ThinkSystem SR250 V2 Server Price in Doha Qatar
SR250 V2 Xeon E-2334 (4C 3.4GHz 8MB Cache/65W), 1x16GB, O/B, 2.5″ HS (8), SW RAID, HS 450W, XCC Enterprise, Rails
Brand
Lenovo
