| Item | Value |
|---|---|
| Basic Information | |
| Module name | OSX010000 |
| Part Number | 02318170 |
| Model | OSX010000 |
| Form factor | SFP+ |
| Application standard/Type | 10GBASE-LR |
| Connector type | LC/DLC |
| Optical fiber type | SMF |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Working case temperature [°C (°F)] | 0°C to 70°C (32°F to 158°F) |
| DDM options | Supported |
| Transmission rate [bit/s] | 10Gbit/s |
| Target transmission distance [km] | Single-mode fiber (G.652) (with diameter of 9 μm): 10 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1310 nm |
| Maximum Tx optical power (AVG) [dBm] | 0.5 dBm |
| Minimum Tx optical power (AVG) [dBm] | -8.2 dBm |
| Minimum extinction ratio [dB] | 3.5 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity (OMA) [dBm] | -12.6 dBm |
| Overload power (AVG) [dBm] | 0.5 dBm |

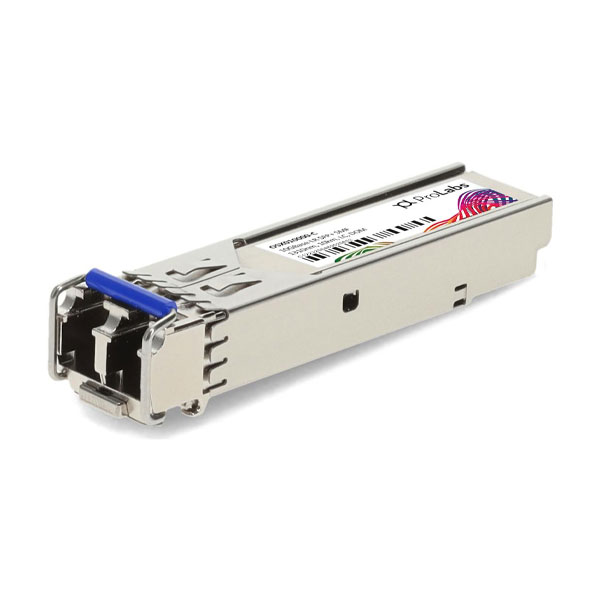

Huawei OSX010000 Accessories Price in Doha Qatar
SKU: OSX010000
Huawei OSX010000 02318170 Accessories
- Type: Optical Transceiver
- Form Factor: SFP+
- Speed: 10G
- Fiber Type: Single-mode
- Wavelength: 1310 nm
- Distance: Up to 10 km
- Connector: LC
Brand
Huawei
