| Item | Value |
|---|---|
| Basic Information | |
| Module name | OMXD30000 |
| Part Number | 02313URC |
| Model | OMXD30000 |
| Form factor | SFP+ |
| Application standard/Type | 10GBASE-SR |
| Connector type | LC/DLC |
| Optical fiber type | MMF |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Working case temperature [°C (°F)] | 0°C to 70°C (32°F to 158°F) |
| DDM options | Supported |
| Transmission rate [bit/s] | 10Gbit/s |
| Target transmission distance [km] | Multimode fiber (with diameter of 62.5 μm): 26 m
Multimode fiber (OM1) (with diameter of 62.5 μm): 33 m Multimode fiber (with diameter of 50 μm): 66 m Multimode fiber (OM2) (with diameter of 50 μm): 82 m Multimode fiber (OM3) (with diameter of 50 μm): 300 m Multimode fiber (OM4) (with diameter of 50 μm): 400 m |
| Modal bandwidth [MHz*km] | Multimode fiber: 160 MHz*km
Multimode fiber (OM1): 200 MHz*km Multimode fiber: 400 MHz*km Multimode fiber (OM2): 500 MHz*km Multimode fiber (OM3): 2000 MHz*km Multimode fiber (OM4): 4700 MHz*km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 850 nm |
| Maximum Tx optical power (AVG) [dBm] | -1.0 dBm |
| Minimum Tx optical power (AVG) [dBm] | -7.3 dBm |
| Minimum extinction ratio [dB] | 3.0 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity (OMA) [dBm] | -11.1 dBm |
| Overload power (AVG) [dBm] | -1.0 dBm |

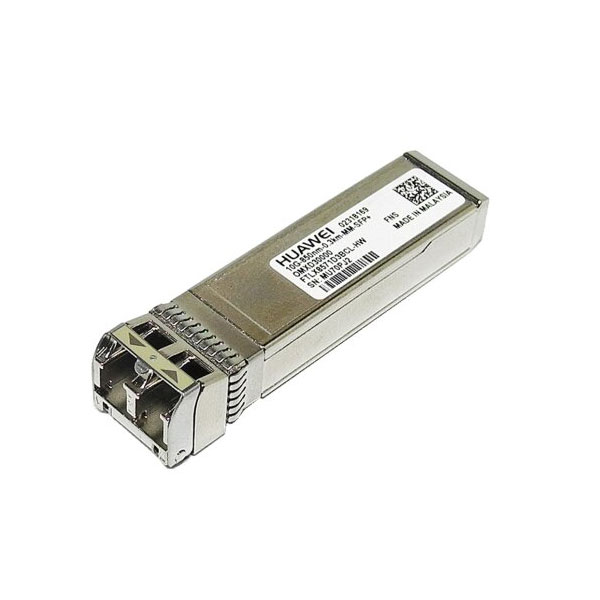

Huawei OMXD30000 Accessories Price in Doha Qatar
Huawei OMXD30000 02318169 Accessories
- Type: Optical Transceiver
- Form Factor: SFP+
- Speed: 10G
- Fiber Type: Multi-mode
- Wavelength: 850 nm
- Distance: Up to 0.3 km
- Connector: LC
Brand
Huawei
