Processor core available  16, per processor

Processor cache  22 MB L3

Memory type  HPE DDR4 Smart Memory with optional Intel Optane Persistent Memory for HPE

NVDIMM type  HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors

NVDIMM rank  Single rank

NVDIMM capacity  16 GB

Infrastructure management  HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)

System fan features  4 single-rotor, standard fans included

Power supply type  1 HPE 800W Flex Slot Universal Hot Plug Low Halogen

Expansion Slots  8, for detailed descriptions reference the QuickSpecs

Network Controller  1 HPE Ethernet 10Gb 2-port 562FLR-SFP+ FlexibleLOM Adapter
(665240-B21) plus optional
stand-up card
*NOTE: No embedded networking

Storage controller  1 HPE Smart Array S100i

Processor Name  Intel® Xeon® Scalable 6226R (16 core, 2.9 GHz, 22 MB, 150W)

Processor number  1

Processor speed  2.9 GHz

Memory, standard  32 GB (1x 32GB) RDIMM

Included hard drives  None ship standard, 8 SFF drives supported

Optical drive type  Optional

Security  Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

Form Factor  2U

Weight  32.6 lb

Weight  14.76 kg

Minimum dimensions ( H x W x D)  17.54 x 28.75 x 3.44 in

Minimum dimensions ( H x W x D)  44.55 x 73.03 x 8.74 cm

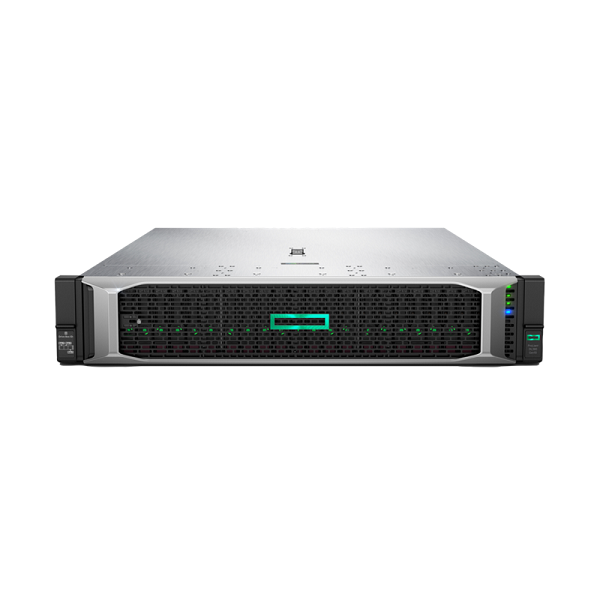

Detailed product description  HPE ProLiant DL380 Gen10 server with one Intel® Xeon® Gold 6226R processor, one 32 GB dual rank memory, 8 small form factor drive bays, one HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter, one SFF Easy Install Rail Kit, one Cable Management Arm Kit, one 800W power supplies, and 3/3/3 warranty
